A renderer that keeps notes on itself

A quine is a program that prints its own source code and nothing else. It's a neat trick, but it's also a dead end - the output is always the same file you started with. I wanted something that used the idea of a program editing itself for an actual purpose: a program whose source code slowly accumulates knowledge, instead of just reproducing itself.

The workload I picked was a Mandelbrot renderer. Rendering is deterministic - the same viewport and parameters always produce the same image - and it's expensive enough that caching is worth doing. Most renderers cache to a folder of PNGs or a database. This one caches inside itself: every finished render gets Base64-encoded and written directly into a dictionary sitting in the .py file, and the file rewrites that one dictionary every time it learns something new.

Starting with membership, not escape time

The first version answered one question per pixel: is this point in the Mandelbrot set or not. That's a boolean, so the image it produces is flat - every pixel is either fully in or fully out, with no shading to suggest how close a point came to escaping.

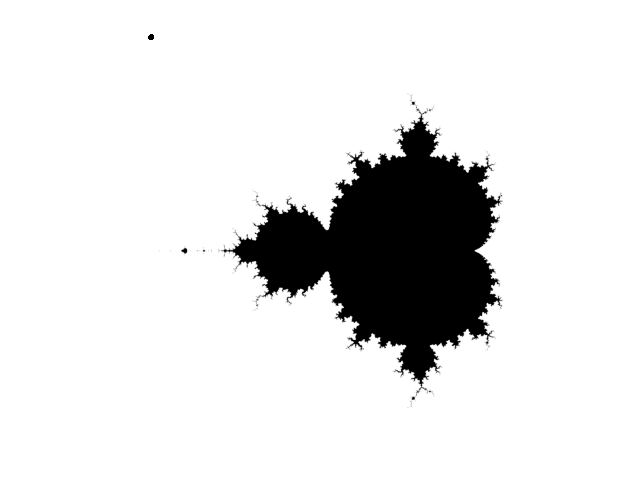

An early black-and-white Mandelbrot render showing only set membership, with no shading or color gradient. — The first working version. In or out, nothing in between.

That got replaced with an escape-time implementation almost immediately. Instead of a boolean, each pixel records the iteration at which |z| > 2 first becomes true, and points that never escape get capped at the maximum iteration count. That single change is what makes the rest of the project possible - you can't build a colormap pipeline on top of a boolean.

The pipeline

Everything downstream of that decision is a fairly standard chain:

viewport (center, zoom)
  → complex grid (NumPy)
  → escape-time matrix
  → normalize to [0, 1]
  → Matplotlib colormap
  → RGB array
  → PIL image

The viewport itself is described by a center point and a zoom factor rather than raw bounds, which turned out to matter later - it's a much more natural thing to hash and compare than four separate floats that all have to agree.

Turning a render into something a dictionary can hold

A PIL image can't sit inside a Python literal, so every finished render goes through one more conversion before it's eligible for caching:

PIL Image → PNG bytes → Base64 → UTF-8 string

The lookup key for that string is a SHA-256 hash of everything that could change the output - the viewport bounds, pixel density, iteration count, and colormap, concatenated and hashed. Same parameters in, same key out, every time:

def cache_key(xmin, xmax, ymin, ymax, pixel_density, num_iterations, colormap):
    combined = f"{xmin}:{xmax}:{ymin}:{ymax}:{pixel_density}:{num_iterations}:{colormap}"
    return hashlib.sha256(combined.encode()).hexdigest()

The one block the program is allowed to touch

The part I was most careful with was making sure the self-rewriting stayed contained. The executable logic - the renderer, the hashing, the encode and decode functions - never changes. Only one region does:

# ===== AUTO-GENERATED START =====

CONFIG = {}
CACHE = {}
STATS = {}

# ===== AUTO-GENERATED END =====

On a cache miss, the file reads itself, finds those two marker comments, rebuilds the block between them using pprint.pformat() so the result is still valid Python, and writes the whole file back to disk. On the next run, that block is just... there, as ordinary source, no different from if you'd typed it in by hand. The program isn't reading a cache file at startup - the cache is the startup state.

Eleven ways to look at the same set

Once the colormap pipeline was in place, testing it meant rendering the same view through every Matplotlib colormap worth trying. It's the same escape-time matrix underneath each one - only the last step of the pipeline changes.

The Mandelbrot set rendered with the inferno colormap: dark background with bright orange and yellow escape bands. — inferno - the default.

The Mandelbrot set rendered with the viridis colormap: dark blue-purple background with green and yellow escape bands. — viridis.

The Mandelbrot set rendered with the magma colormap: dark purple-black background with pink and pale yellow escape bands. — magma.

The Mandelbrot set rendered with the plasma colormap: dark violet background with hot pink and yellow escape bands. — plasma.

The Mandelbrot set rendered with the cividis colormap: muted blue-to-yellow gradient. — cividis.

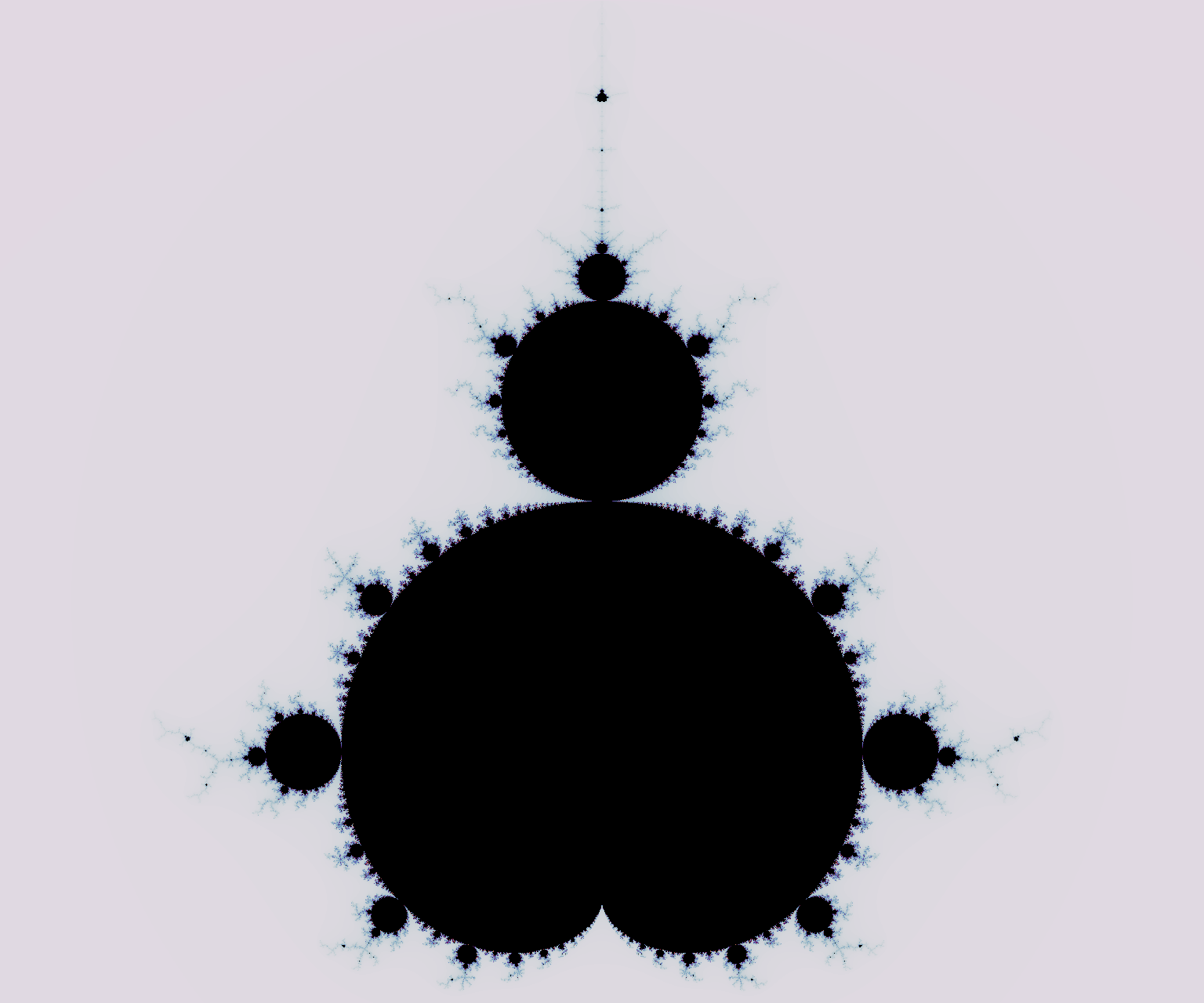

The Mandelbrot set rendered with the twilight colormap: cyclic pale purple and blue bands. — twilight.

The Mandelbrot set rendered with the turbo colormap: bright rainbow bands from blue through red. — turbo.

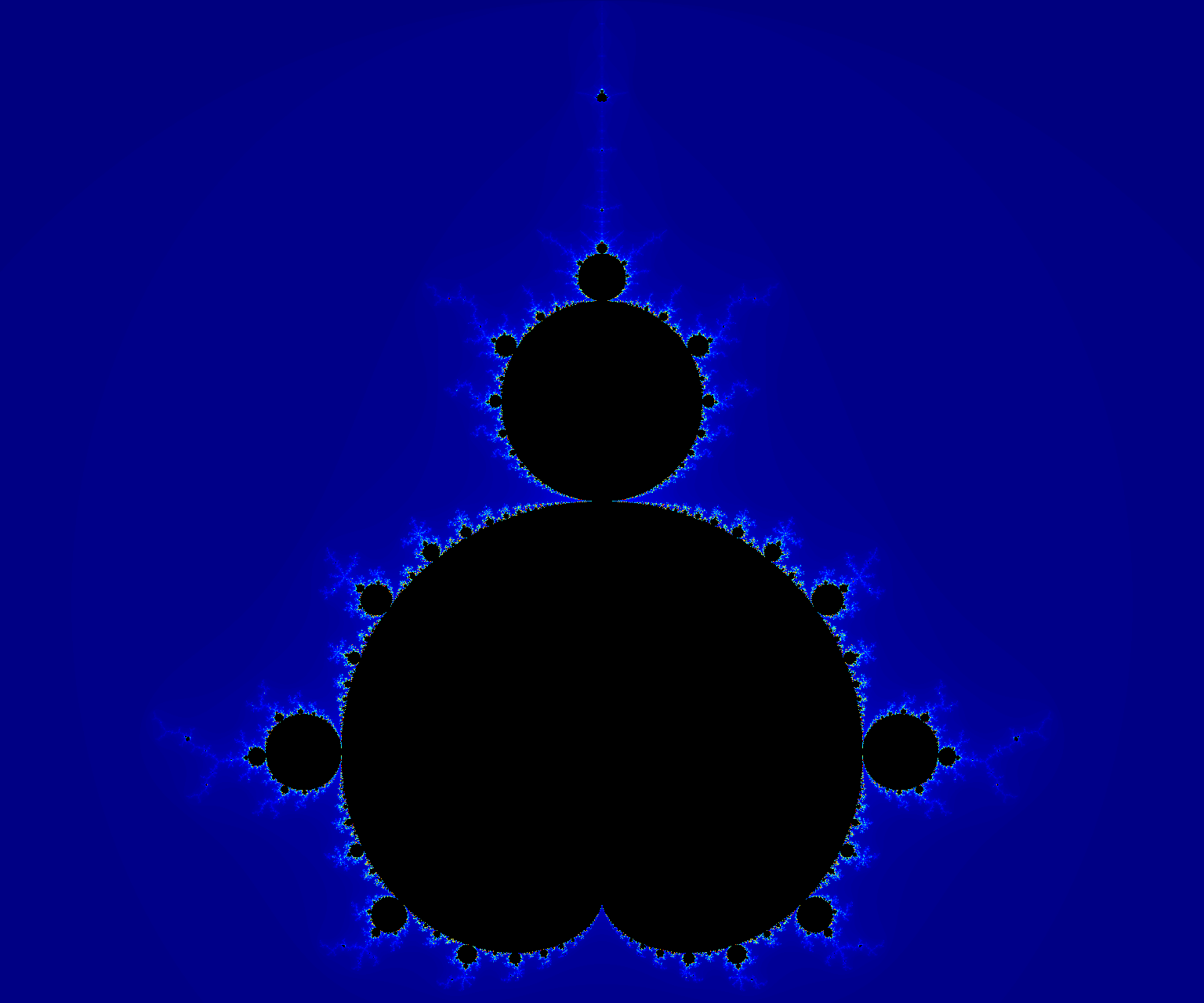

The Mandelbrot set rendered with the jet colormap: classic blue-to-red rainbow bands. — jet.

The Mandelbrot set rendered with the rainbow colormap: saturated rainbow escape bands. — rainbow.

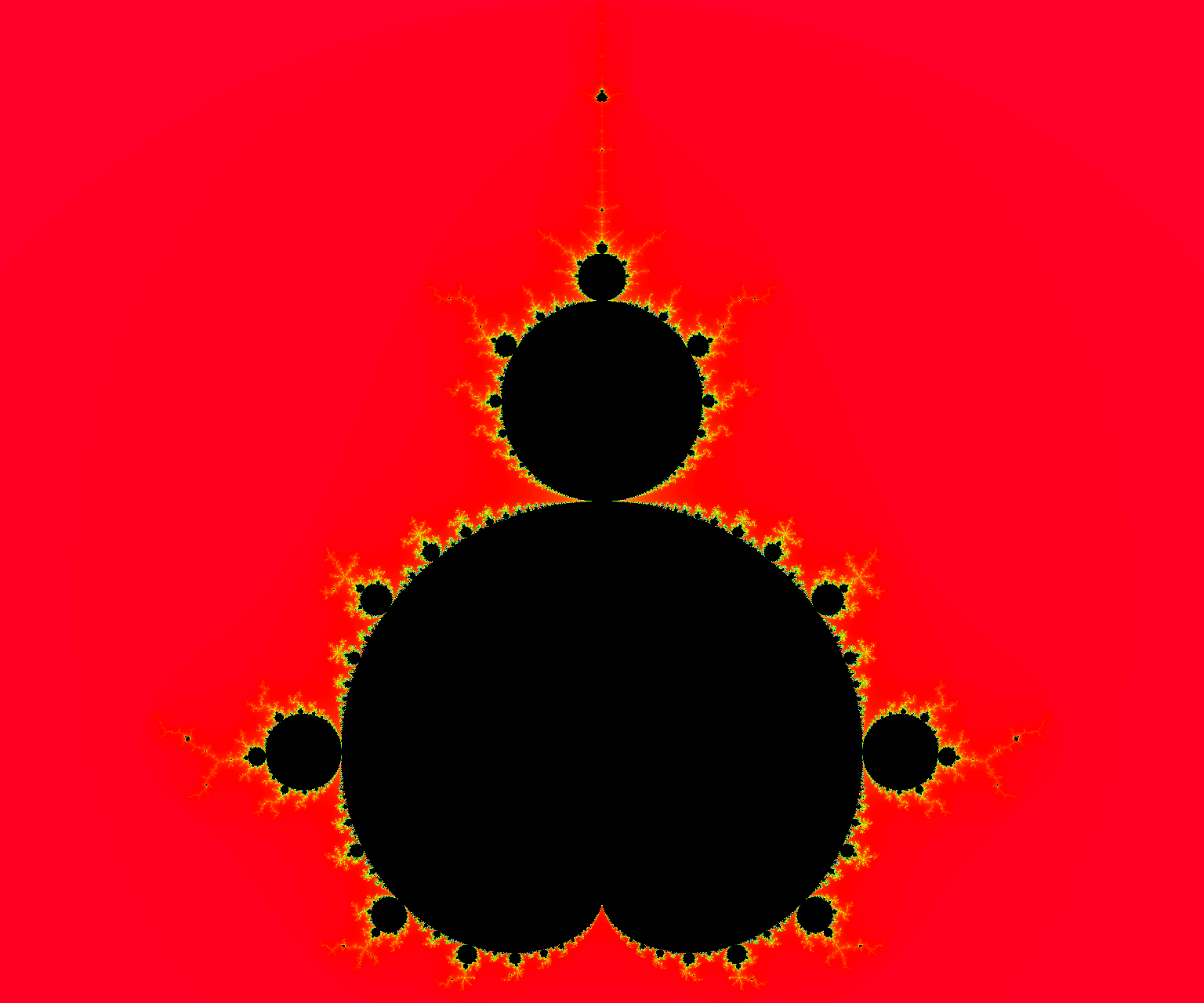

The Mandelbrot set rendered with the gist_rainbow colormap: high-contrast rainbow escape bands. — gist_rainbow.

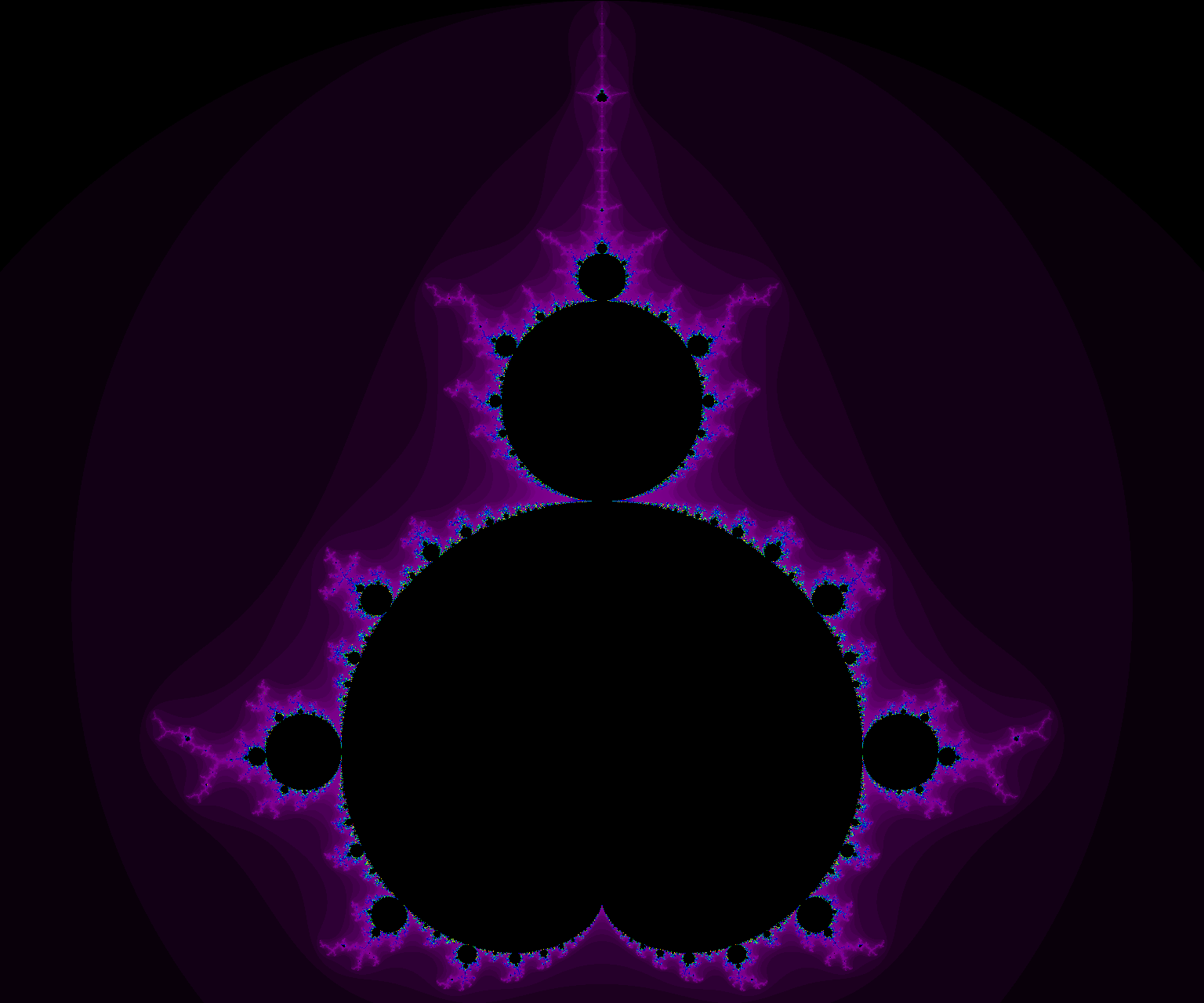

The Mandelbrot set rendered with the nipy_spectral colormap: dense spectral escape bands from black through violet. — nipy_spectral - my favorite of the set, mostly because it looks the least like a default.

● ● ● ● ● ● ● ● ● ● ●

Every one of those eleven renders lives in the cache under its own hash. The first time each colormap is requested it costs a full render; every time after that it's a Base64 decode, which is why the eleven images above were each rendered exactly once, ever.

What got left out

A few directions got explored and then deliberately dropped. Tile-based caching - splitting the viewport into tiles so an infinite-zoom UI could request only the tiles it needs - turned out to need a tile manager, an LRU eviction policy, and a coordinate system for addressing tiles independent of the top-level viewport. That's a reasonable project on its own; it just isn't this project. A JavaScript/Web Worker port had the same problem - interesting, but it dilutes the one thing that made the embedded cache worth building in the first place. Scope stayed at four layers: escape-time computation, rendering, embedded cache, source rewriting. Everything else is future work, on purpose.

An early low-resolution scatter-style test render of the Mandelbrot set. — One of the throwaway sanity checks from before the pipeline was trustworthy - the same instinct as plotting a spiral before touching real math.

Does the cache actually help?

The only way to know is to measure it, so every call to get_mandelbrot() is wrapped in time.perf_counter(). A cache miss pays for the full NumPy escape-time computation; a cache hit pays for a Base64 decode and a PNG parse. The gap between those two numbers is the entire argument for embedding the cache in the first place - if reconstructing from Base64 weren't meaningfully faster than recomputing, there'd be no reason to bother rewriting the source file at all.

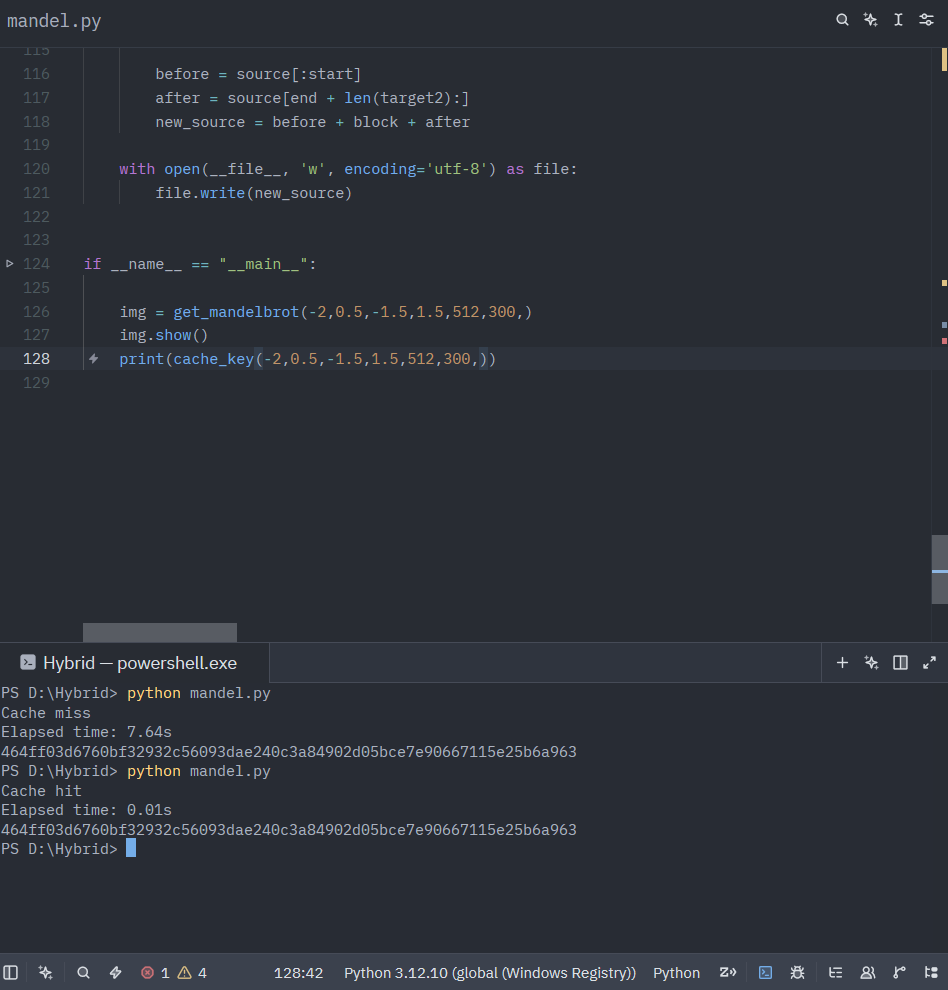

A terminal showing mandel.py run twice: the first run prints 'Cache miss' with an elapsed time of 7.64 seconds, the second prints 'Cache hit' with an elapsed time of 0.01 seconds, both followed by the identical SHA-256 cache key. — Same viewport, same parameters, same key both times - 7.64s to render it, 0.01s to decode it back out of the source file.

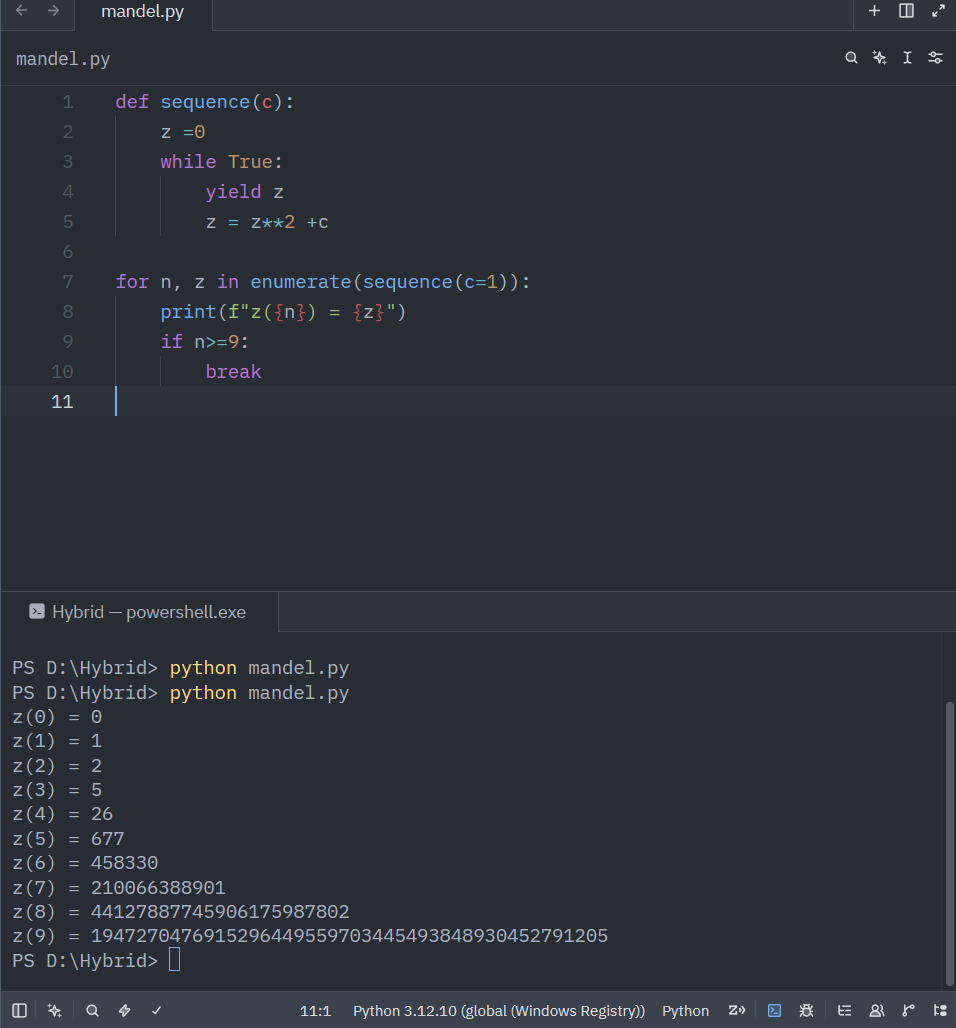

A terminal showing a Python script that iterates z = z² + c for a single point (c=1) and prints each value; the sequence diverges rapidly by z(9) — Before any of it was a NumPy array, it was this - one point, one recurrence, watched by hand. c=1 escapes fast enough that by z(9) you're looking at a 43-digit number.

Coda

Nothing about the executable logic changes at runtime - the functions on disk today are the same functions that were on disk before the first render ever happened. What changes is a dictionary sitting between two comments, getting a little larger every time the renderer sees a viewport, iteration count, and colormap combination it hasn't seen before. It's not a quine. It doesn't need to be. It just needs to remember.

The source is on GitHub: Shaurya-34/self_rewriting_mandelbrot.
